KLI-103D Electric terminal blockpush type spring speaker terminal connector,wire terminal clip
Product Description
1. Application: Connector for junction box, MCB, Wire and the some place else need wiring the cable.
2. Specialty: Safety, reliability, and easy to operate without tools.
3. Standard: EN/IEC 60998-2-2
4. Certification: CE, ROHS
Our company specializes in various connectors in your exact specification.If you do not find the exact items your needs,please donot be rush to go away.Send your specifications or item number or picture to us so we can give you our best resolves.
Quotation will be send you within 24 hours after receiving your specific enquiry.
For more informations and items,please contact us.
What is your terms of payment ?
Small Order amount, 100% better by PayPal or T/T in advance. Large amount like more than 5000USD, 30% T/T in advance , balance before shipment.
How to proceed an order?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production and ship once it's ready.
How do you guarantee my goods right?
Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

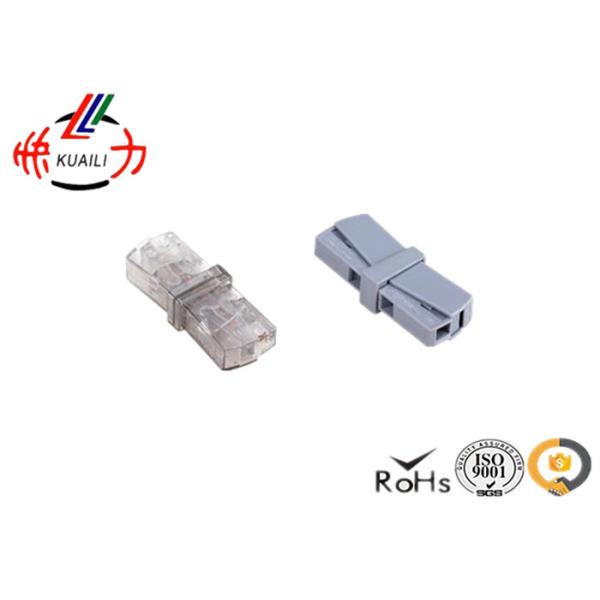

KLI-201
Electrical parameters: 400V / 4KV / 24V

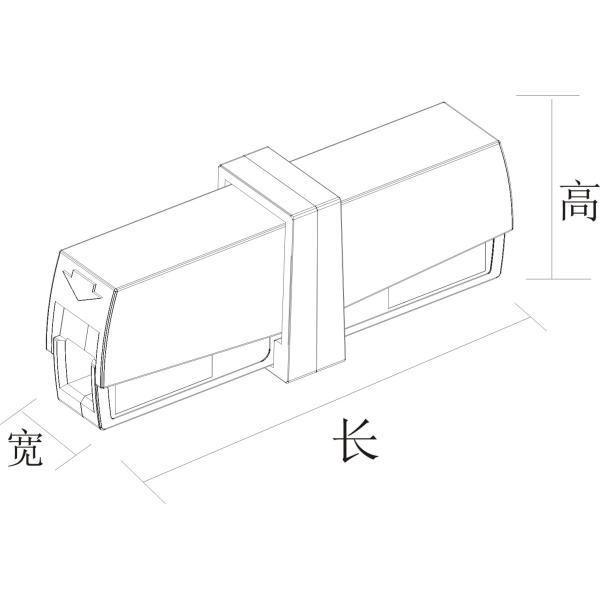

Size: 20.5X8.5X32mm (length × width × height)
Applicable wire:
Square hole with electrical side: 0.5-2.5mm2 (multi-strand soft wire)
Stripping length: 9-10mm
Stripping
Strip solid conductor to 11 mm
Connection
Insert stripped solid conductor until it hits backstop.
Visual Wiring Inspection
The transparent housing shows if conductors are fully inserted; within the colored base, a clear port shows if the conductor’s strip length is correct. Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side. Picture above shows center conductor with exceeded strip length.
Testing
Testing via port opposite to conductor entry.
Removal
Hold conductor and alternately twist left and right, while slightly pulling the connector.
PUSH WIRE
terminates the following copper conductors
Add: No.78 Kaifa Road.Electrial Industial zone,Of North
Baixinag Town Yueqing Zhengjiang China
